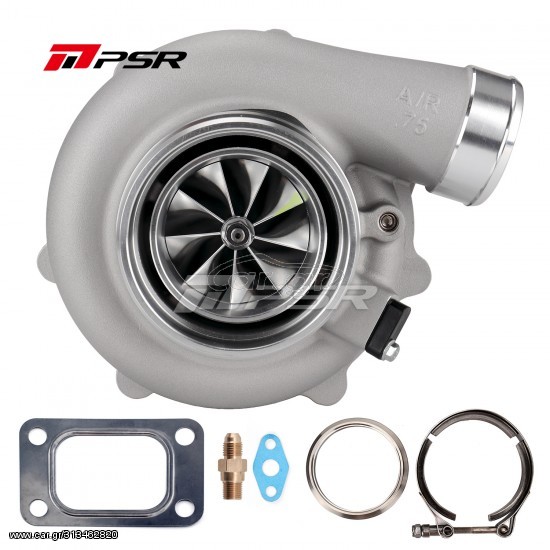

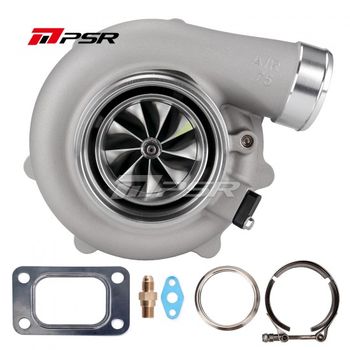

G35-1050 DBB, 0.75A/R Cover, Billet Comp. Wheel, 0.83A/R T3 inlet, vband outlet
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
9 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Hp Rating: 700-1000
Engine displacement: 2.5-5.5L
Description
Compressor Wheel: 68*84mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4” Hose
Compressor Outlet: 2.5” V-Band
Turbine Inlet: T3
Turbine Outlet: 3” V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
Turbine husing: T3, 0.83A/R
